Five Reasons to Specify Vibe Closure Systems’ Products
GardaLok™
Every GardaLok™ technology was engineered to overcome the security challenges of industrial packaging and prevent unauthorised access.
Multi-Point Retention
Independent retention points significantly increase resistance to covert removal compared with conventional single-lock systems.
Immediate Tamper Evidence
Controlled destructive opening creates irreversible, visible evidence of unauthorised access.
Superior Anti-Pry Protection
Engineered geometry resists prying attempts, preventing intact removal and reinstallation.
Robust Structural Performance
A continuous support structure maintains rigidity and retention without compromising strength.
Patent-Pending Security Architecture
Patent-pending geometry integrates multiple retention technologies into a single system, delivering exceptional tamper resistance and unmistakable evidence of unauthorised access.
Specification
Type

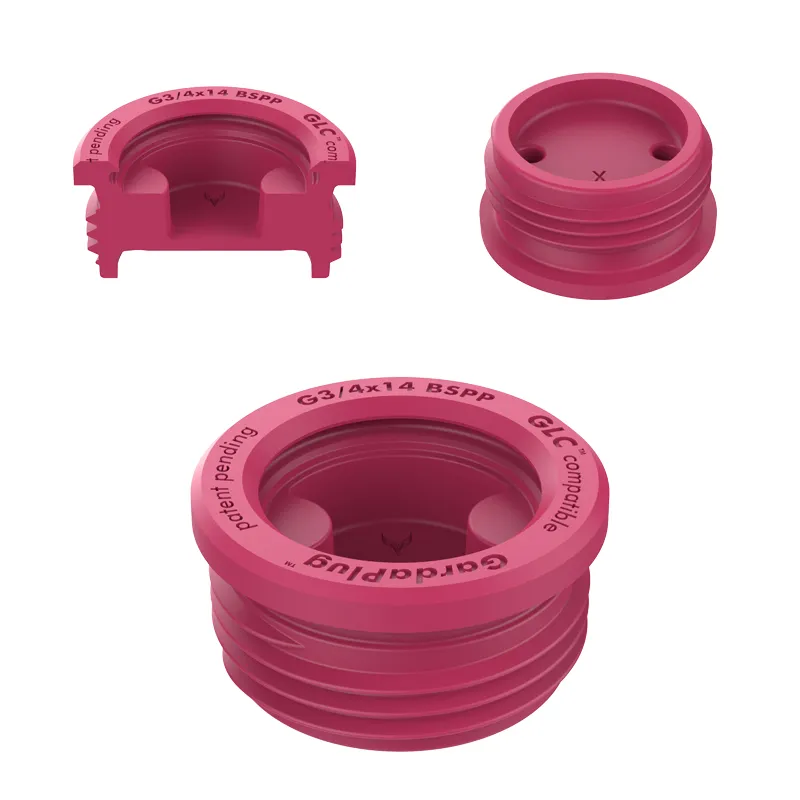

G3/4x14 BSPP GardaPlug Nylon
G3/4x14 BSPP GardaPlug PP
G3/4x14 BSPP GardaPlug HMWHDPE
Product Specification
VCS-1035 Nylon
VCS-1035 PP
VCS-1035 HMWHDPE
Construction
Nylon
PP Copolymer
HMWHDPE
Operating Temperature
-40°C to 100°C
-20°C to 80°C
-50°C to 80°C
Compatible Security Cap(s)
VCS-1024 GLC-59
VCS-1006 G3/4 GardaCap
VCS-1006 G3/4 GardaCap
VCS-1024 GLC-59
VCS-1006 G3/4 GardaCap
VCS-1006 G3/4 GardaCap
VCS-1024 GLC-59
VCS-1006 G3/4 GardaCap
VCS-1006 G3/4 GardaCap
Thread Pitch
0.07” [1.81mm]
0.07” [1.81mm]
0.07” [1.81mm]
Gasket Options
GLC- G1008-V-EPDM-N
GLC- G1008-V-EPDM-N
GLC- G1008-V-EPDM-N
Ideal Application
Industrial chemicals, agricultural pesticides, fertilizers, liquid food ingredients, flavourings, consumable goods, oils, fats and non-polar solvents
Strong and weak acids (e.g., hydrochloric, sulfuric), alkalis, salt solutions, and industrial alcohols, industrial cleaners, water treatment compounds, fertilisers and non-hydrocarbon-based industrial lubricants and oils.
Strong and weak acids (e.g., hydrochloric, sulfuric), alkalis, salt solutions, and industrial alcohols, industrial cleaners, water treatment compounds, fertilisers and non-hydrocarbon-based industrial lubricants and oils.
Patent Status
Patent Pending
Patent Pending
Patent Pending
