Five Reasons to Specify Vibe Closure Systems’ Products
UltraGrip™
UltraGrip™ manufactured to exacting standards and backed by VCS engineering and quality disciplines.
Dependable Sealing
Precision-controlled closure geometry and sealing interfaces provide reliable containment across demanding industrial applications.
Consistent Closure Performance
Controlled dimensions and manufacturing processes deliver repeatable plug engagement, tightening and sealing performance.
Robust Steel Construction
Engineered steel plugs and flanges provide the strength and durability required throughout filling, transportation, handling and storage.
Proven Industry Format
Built around the established steel plug-and-flange closure architecture used throughout the global drum industry, providing customers with a familiar and proven closure solution.
GardaCap™ Ready
UltraGrip™ can be combined with compatible GardaCap™ security caps to add advanced retention, anti-pry protection and irreversible tamper evidence where enhanced package security is required.
Specification
Type

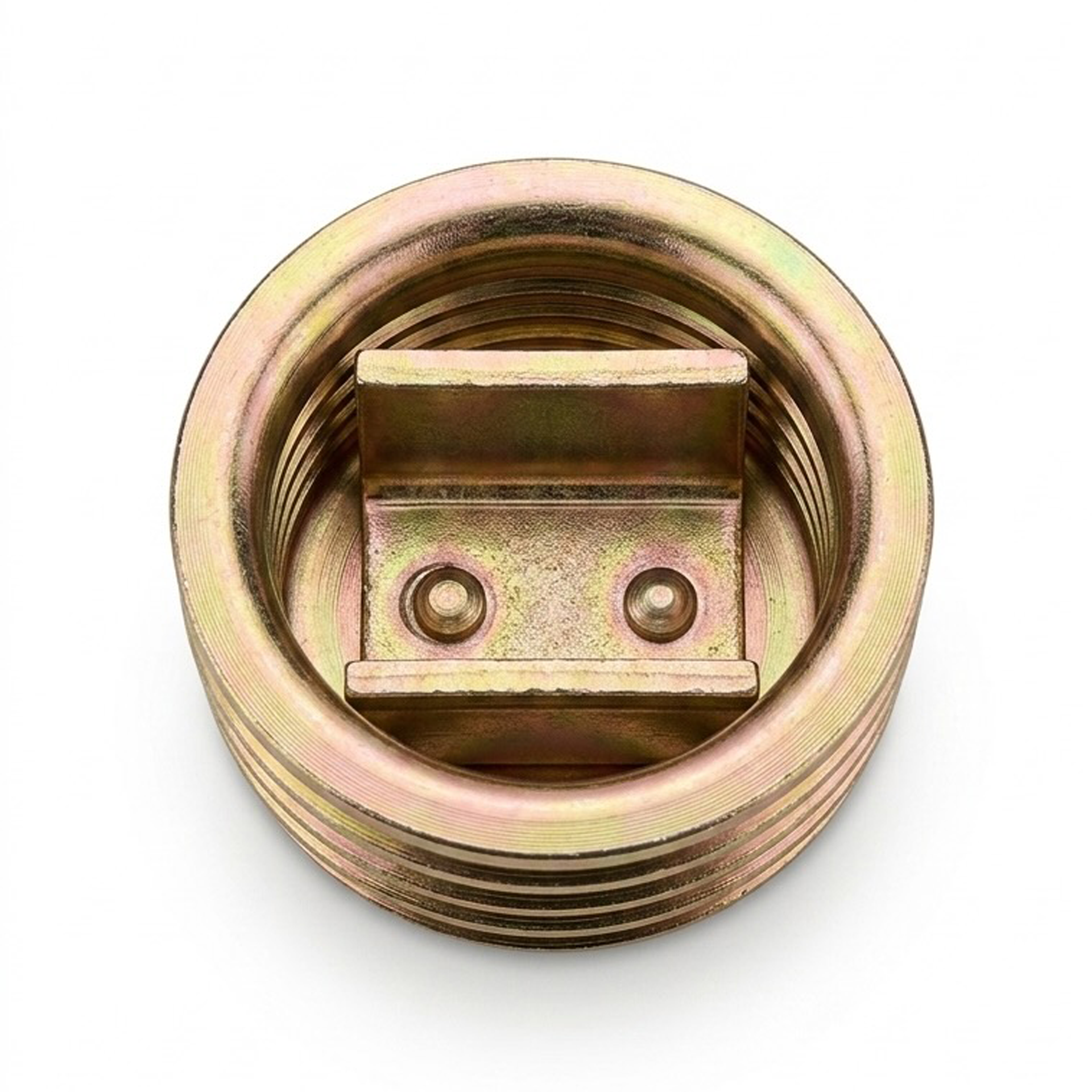

G3/4 UltraGrip Plug Plated
G3/4 UltraGrip Plug Lined PPG2088
G3/4 UltraGrip Plug Lined R78433
G3/4 UltraGrip Plug Stainless
Product Specification
VCS-1043 PL
VCS-1043-2088
VCS-1043-R78433
VCS-1043SS
Construction
Steel
Steel
Steel
Stainless 316
Operating Temperature
Subject to gasket:
NBR
-30°C to +100°C
EPDM
-40°C to +120°C
NBR
-30°C to +100°C
EPDM
-40°C to +120°C
Subject to gasket:
NBR
-30°C to +100°C
EPDM
-40°C to +120°C
NBR
-30°C to +100°C
EPDM
-40°C to +120°C
Subject to gasket:
NBR
-30°C to +100°C
EPDM
-40°C to +120°C
NBR
-30°C to +100°C
EPDM
-40°C to +120°C
Subject to gasket:
NBR
-30°C to +100°C
EPDM
-40°C to +120°C
NBR
-30°C to +100°C
EPDM
-40°C to +120°C
Compatible Flange
Mates with G3/4 UltraGrip flange
Mates with G3/4 UltraGrip flange
Mates with G3/4 UltraGrip flange
Mates with G3/4 UltraGrip flange
Thread Pitch
0.071” [1.81 mm] — 14 TPI
0.071” [1.81 mm] — 14 TPI
0.071” [1.81 mm] — 14 TPI
0.071” [1.81 mm] — 14 TPI
Gasket Options
NBR standard for oils / solvents EPDM optional for aqueous fills
EPDM preferred for water-based / mild chemicals
NBR optional after compatibility check
NBR optional after compatibility check
EPDM or NBR selected by fill chemistry
Confirm against lined drum system
Confirm against lined drum system
EPDM preferred for aqueous / corrosive service
NBR for oil / hydrocarbon service
NBR for oil / hydrocarbon service
UN/DOT Functional Drop Test – Cold Weather Hydro
Validate at selected gasket temperature limit
Validate at selected gasket temperature limit
Validate at selected gasket temperature limit
Validate at selected gasket temperature limit
Ideal Application
General industrial oils, solvents, coatings and export drums requiring improved external corrosion protection versus unplated steel.
Water-based paints/coatings, detergents, mild aqueous chemicals and lined drums requiring internal corrosion barrier protection.
More demanding lined chemical applications, stronger solvents and products requiring enhanced internal coating resistance.
High-corrosion, high-purity, marine/high-humidity and premium applications where 316 stainless plus compatible gasket is required.
ISO Quality Standard
Yes
Yes
Yes
Yes
Operating temperature is assembly guidance only and is governed by gasket selection, lining compatibility, product chemistry and UN/DOT validation.
